If you’re looking to make your RC drift car glide around corners with unmatched precision, tuning your Yokomo V4 Gyro is the first step towards achieving that dream.

Your gyro is the cornerstone of achieving those smooth, controlled drifts that make RC drifting such an exhilarating hobby. The Yokomo V4 Gyro acts like your car’s balancing pole. This is what ensured that it remains stable and on course while you navigate those thrilling drifts. As a result, making every slide a showcase of style and control.

Introduction to the Yokomo DP-302 V4 Gyro

The Yokomo V4 Gyro is akin to your RC drift car’s balancing pole, keeping it stable and on course while you master those thrilling drifts. It’s the secret behind making your car not just slide, but slide with style and control. Never underestimate the importance of your gyro.

Firstly, it must be installed correctly. Always use high quality double sided tape that does not go hard over time.

The best location for installation is near the center of the chassis on a flat, level surface away from potential sources of interference. This placement ensures the gyro can accurately sense the car’s movements and respond appropriately, enhancing your control and stability during drifts. Remember, the correct installation and positioning of your gyro can significantly influence your RC drift car’s performance, making every drift smoother and more controlled. Some people have argued thsi in the past and my experience in testing is that it does make a difference.

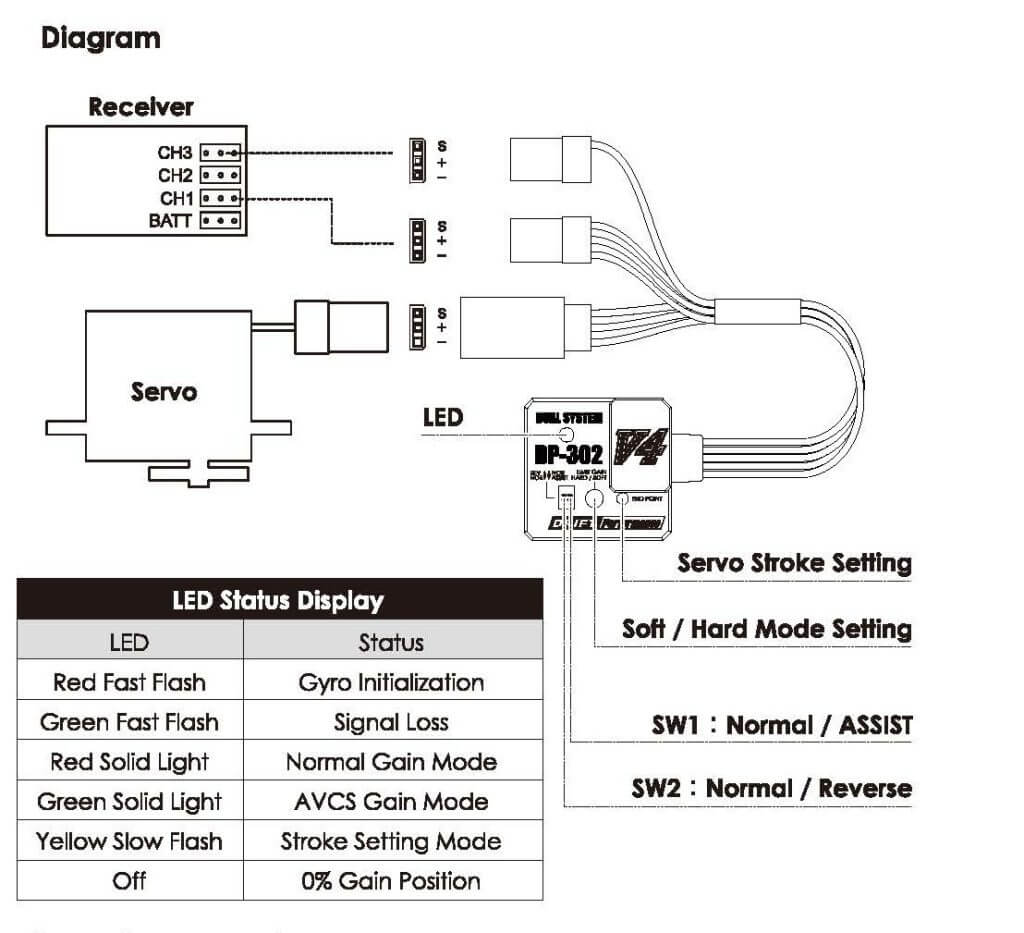

Below is a diagram that explains how to connect it and is your reference for switches and modes including what the light sequences mean.

Setting Up Your Gyro: A Step-by-Step Guide

First things first, we need to hook up your Yokomo V4 Gyro correctly:

1. Connect the gyro between the car’s receiver and steering servo, linking them like friends in a trust circle.
2. Calibrate by turning on your car and transmitter, allowing the gyro to learn your car’s movements. This setup is crucial for accurate drifting control.

Understanding the Yokomo V4 Gyro Modes: Normal vs. ASSIST

Your Yokomo V4 Gyro comes equipped with two modes to tailor your driving experience:

• Normal Mode offers you full control with gentle stability assistance, perfect for learning.
• ASSIST Mode amplifies the gyro’s help, guiding your car through drifts smoothly, like having a wise instructor by your side.

Servo Stroke / End Point Setting for Precision Control

To get the best drift performance, you need to customize how much your wheels can turn:

• Enter the stroke setting / end point mode on your gyro.
• Adjust the turning range with your remote and save it with a press on your gyro. It’s like setting up your favorite level in a video game for easy access.

Here’s how to do that in 4 easy steps:

1. Enter Stroke Setting Mode:

• Hold the Setup Button: Press and hold the setup button on the gyro.
• Power On the Car: While holding the button, turn on your RC car. Keep holding the button until you see both the red and green LEDs flashing slowly. This indicates that you are now in stroke setting mode.

2. Adjust the Left Stroke:

• Move the Transmitter Stick: Rotate the steering stick on your transmitter fully to the left position.
• Save the Position: Press the setup button on the gyro. The red and green LEDs will flash quickly twice, then the green LED will stay solid and the red LED will flash slowly. This means the left stroke setting is saved.

3. Adjust the Right Stroke:

• Move the Transmitter Stick: Rotate the steering stick on your transmitter fully to the right position.
• Save the Position: Press the setup button again. The red and green LEDs will flash quickly twice, then both LEDs will stay on solid. This indicates that the right stroke setting is saved.
• Now do the same for the Left and save again.

5. Complete the Initialization:

• Wait for the LEDs: After saving both left and right stroke settings, the gyro will automatically start the initialization process. Both LEDs will flash, and after about 2 seconds, the initialization will be complete, and the gyro will be ready to use.

Dual Mode Gain: Soft vs. Hard Settings

The “gain” setting on your Yokomo V4 Gyro adjusts the gyro’s response to your car’s movements, with two profiles: Soft Mode and Hard Mode. This feature is essential for adapting your car’s handling to different conditions and preferences.

• Soft Mode offers lower sensitivity with precise control for experienced drivers or when nuanced handling is required.
• Hard Mode increases sensitivity, providing stronger corrections to maintain stability, great for beginners or challenging surfaces.

Adjusting Dual Mode Gain:

• Through your transmitter, you can adjust the gain from -100% (Hard Mode) to +100% (Soft Mode), tailoring the gyro’s intervention to your needs.
• At 0% gain, the gyro provides no assistance, offering pure manual control for those who prefer a challenge or want to test their skills unaided.

Fine-Tuning your Yokomo V4 Gyro for Maximum Performance

Tweaking your Yokomo V4 Gyro settings can drastically improve your drifting:

• Take a test drive and observe your car’s response. Adjust the gain settings to find the perfect balance between responsiveness and stability.
• Experiment with small adjustments, as even slight changes can significantly affect your car’s handling.

Troubleshooting Common Issues

If you encounter issues, remember:

• Check the gyro’s lights for signal loss indicators.
• Ensure all connections are secure and the battery is charged. Often, simple fixes can solve major problems.

Taking Your RC Drift Car to the Next Level

As you become more familiar with your Yokomo V4 Gyro, don’t hesitate to experiment with different settings to match your driving style and the track conditions. Mastery comes from practice and fine-tuning your setup to perfection.

Conclusion: Enjoying the Drift with Yokomo DP-302 V4 Gyro

Tuning your Yokomo V4 Gyro opens up a new world of RC drifting, where precision meets the thrill of the drift. With practice and the right settings, your RC drift car will not just perform but astound, sliding around corners with ease and style. Remember, the journey to mastering RC drifting is as rewarding as the drifts themselves. So, grab your controller, tune your gyro, and let the adrenaline-fueled fun begin!

By adjusting and experimenting with your Yokomo V4 Gyro’s settings, you’ll discover the perfect balance for your car, making every drift a testament to your skill and tuning abilities. Happy drifting!
